BLASI – C127

The brand-new designed in-ground swing door operator C127 is available in the standard (S) and in the heavy (H) execution to suit every requirement. The main use for this in-ground swing door operator is mainly to hide the drive in the floor and provide a better aesthetically design to your façade system while avoiding a bulky drive at the top.

The new operator combines the experience, skill and reliable technology from Blasi. Thanks to its modular construction and ability to fit existing doors, the C127 is amazingly flexible and can be used for the widest possible range of applications. Exceptionally quit in operation yet highly dynamic, even heavy doors of up to 400 kg can be easily operated.

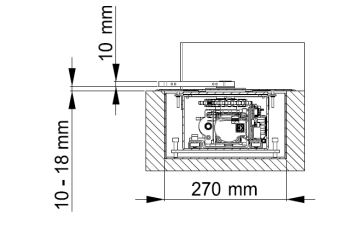

The hidden drive provides the most demanding architect with greater freedom of design. The easy to maintain system is located in the floor, if required covered by the flooring itself, thus harmoniously blending into the entrance area. The operator also serves as the lower bearing and moves the door leaf using a pivot or slide arm connection.

• The C127 is ideal to be used in any building like office buildings, hotels, hospitals, airports, museums, shopping malls, residential buildings and many more

• Standard execution “S” offers the use for door leaf weights up to 250kg (551 lbs) and for the heavy version “H” the use of weights up to 400 kg (880 lbs)

• Including a complete floor-spring closer that can be used during power failure

• Drive unit fully sealed against dirt and water in class IP 67

• To be used as a single or as well double leaf execution

• Available with integrated magnetic brake
