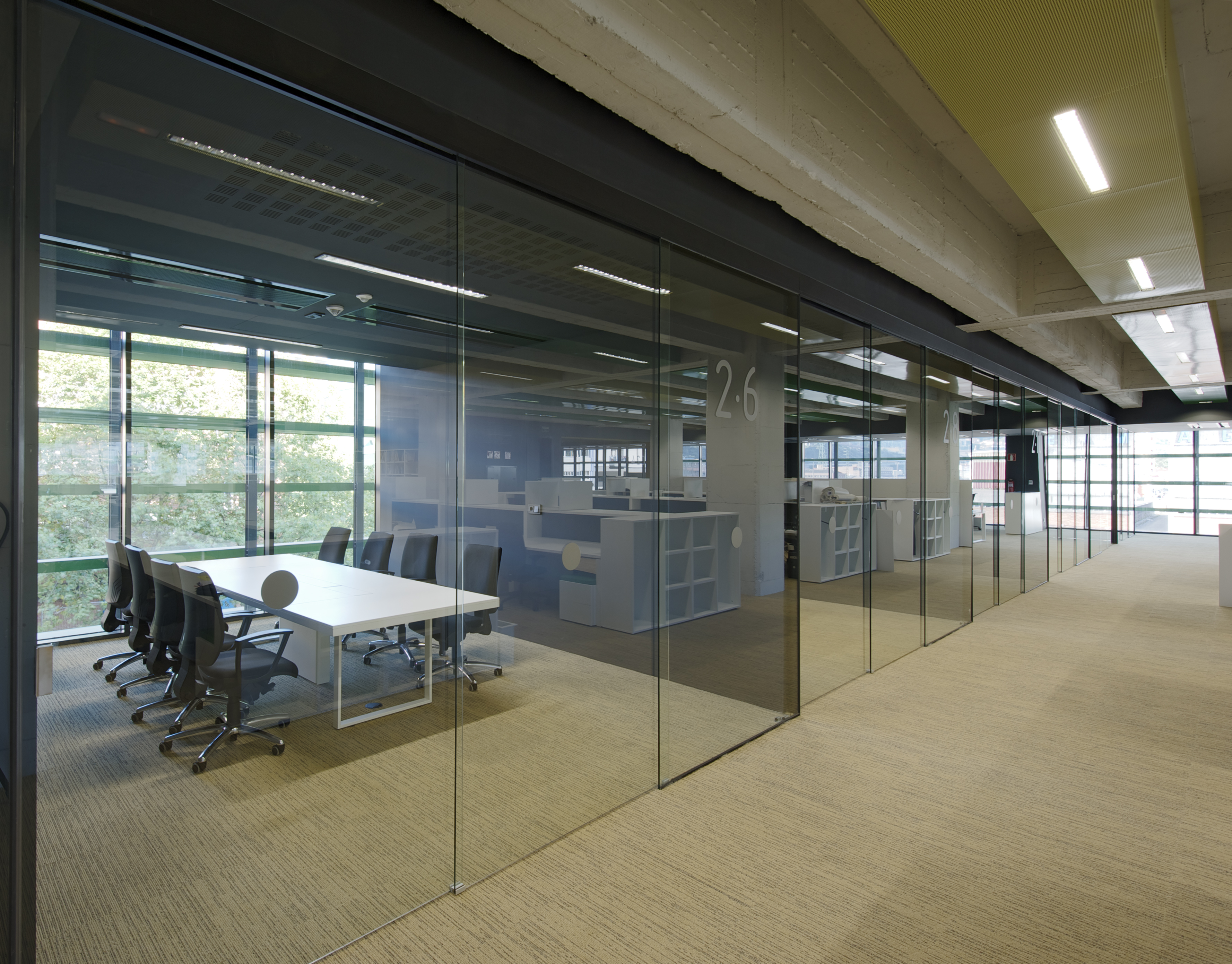

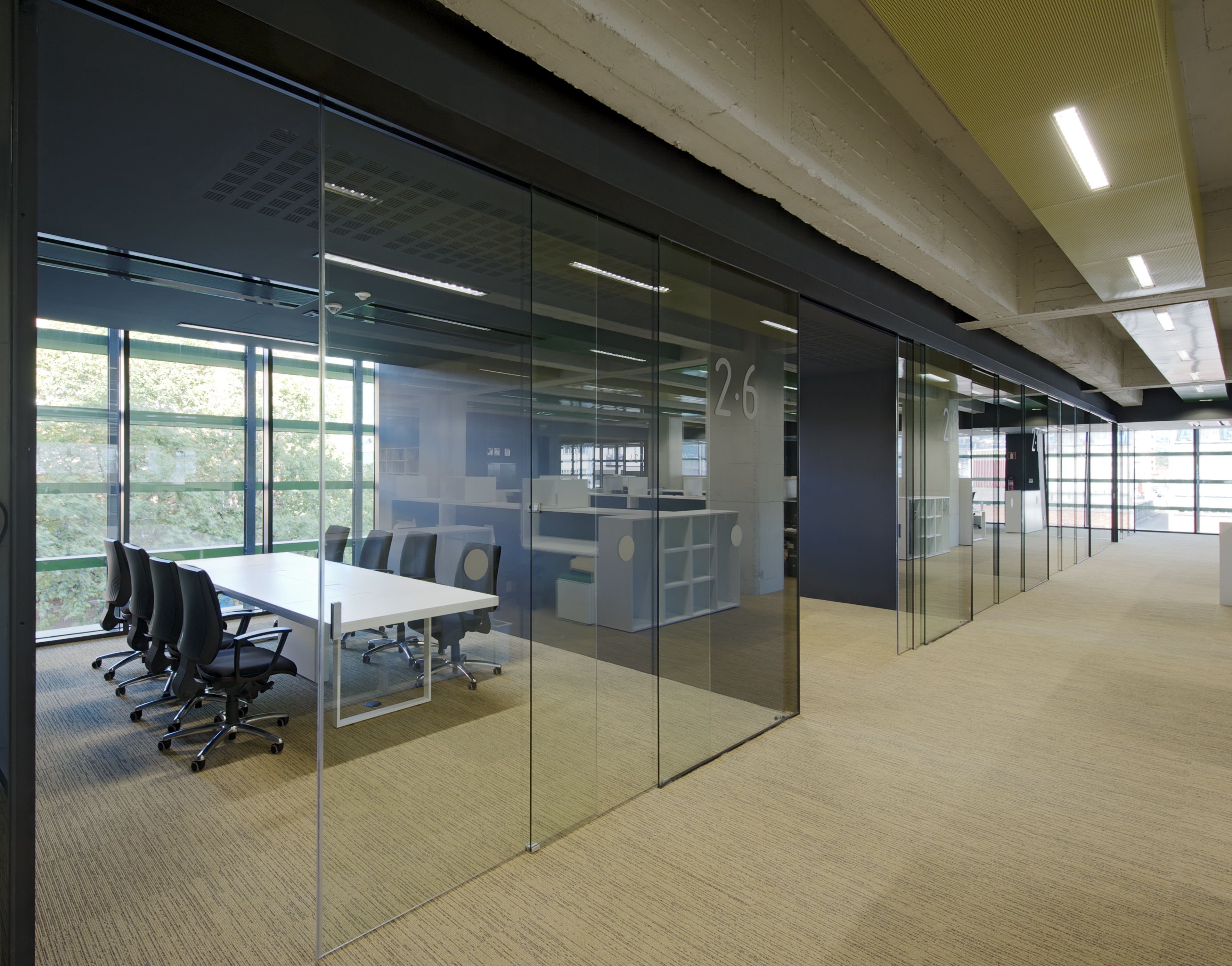

KLEIN Extendo – Biparting Telescopic Doors

Extendo by KLEIN is a telescopic mechanism designed to divide ambiances through simultaneous sliding frameless glass doors providing a large opening with a minimal parking space.

• Ideal for conferences rooms, offices, kitchen or bedroom entrances, etc.
• Innovative system for high end projects leaving a clear opening up to 16’-8”.
• Synchronized opening system of 2, 3 or 4 doors.
• Clean opening free of floor tracks.
• Glass panels held through high weight capacity pressure clamps with no glass drillings (use of tempered or laminated glass).
• Use of 3/8” and ½” glass panels up to 10’ high.
• Pre-mounted and pre-tensed transmission system for a quicker and easier assembly.
• “Silver” anodized aluminium profile (AA10 ISO 7599, 10 microns).
• Ball bearing system for quiet and soft opening.
• Wall, ceiling and dropped ceiling mounted.

Systems tested up to 100.000 cycles as per European standard EN1527.

A NEW four (4) Panel version of the Extendo has recently become available – this configuration permits a total of four (4) synchronized biparting panels (2 per side) and is perfect for wide conference room openings.

– call Dash Door today for details –
